Solar Access Viewsheds

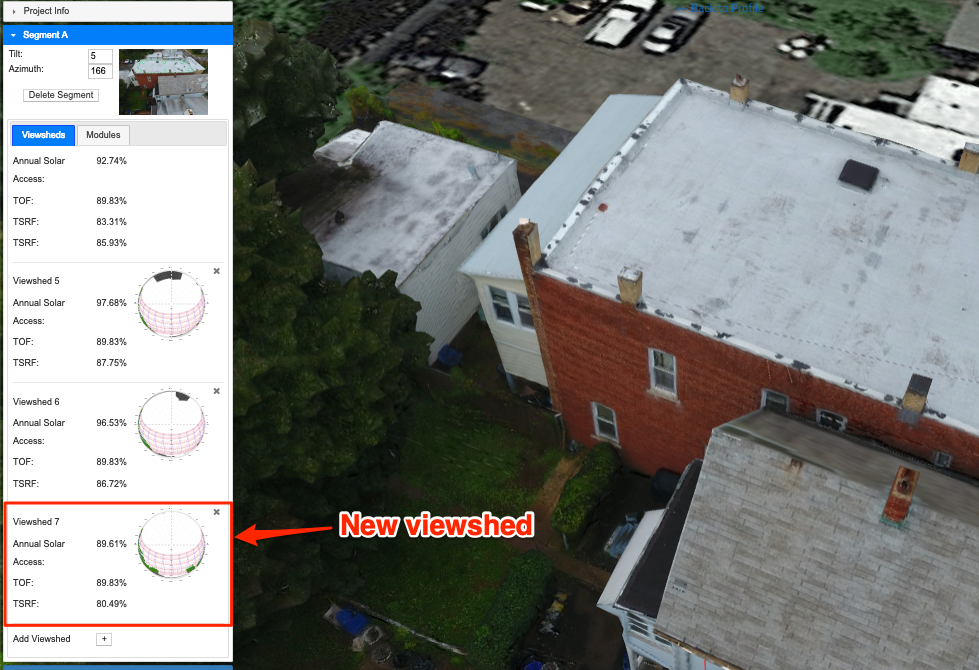

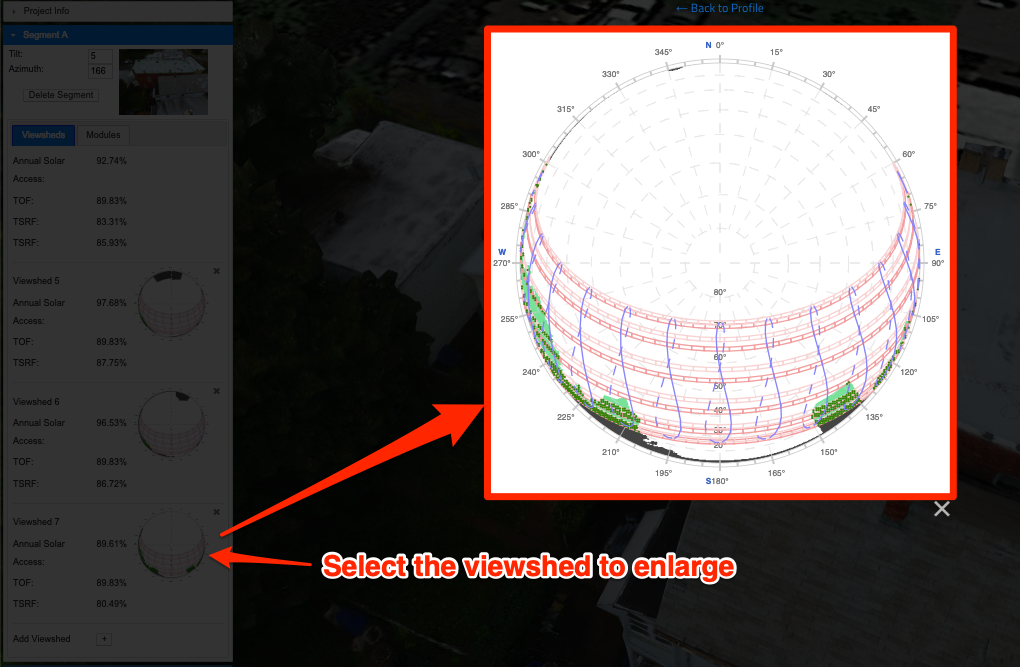

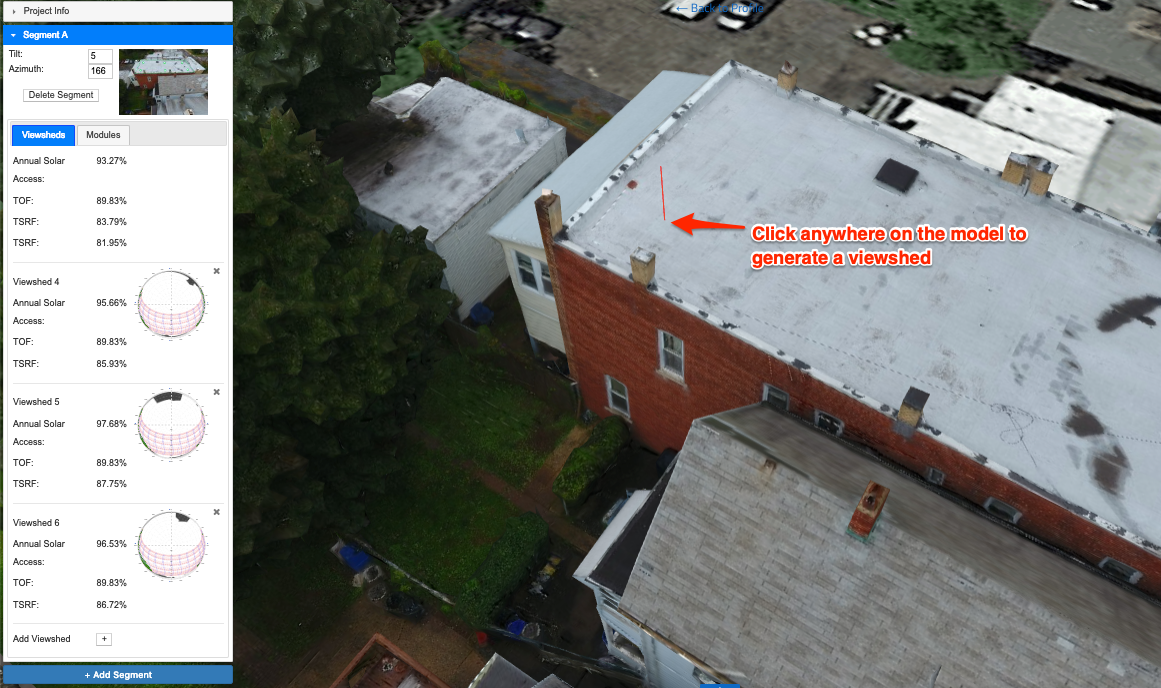

Generate solar access viewsheds from anywhere in the 3D mapped environment.

🚧

Please Note

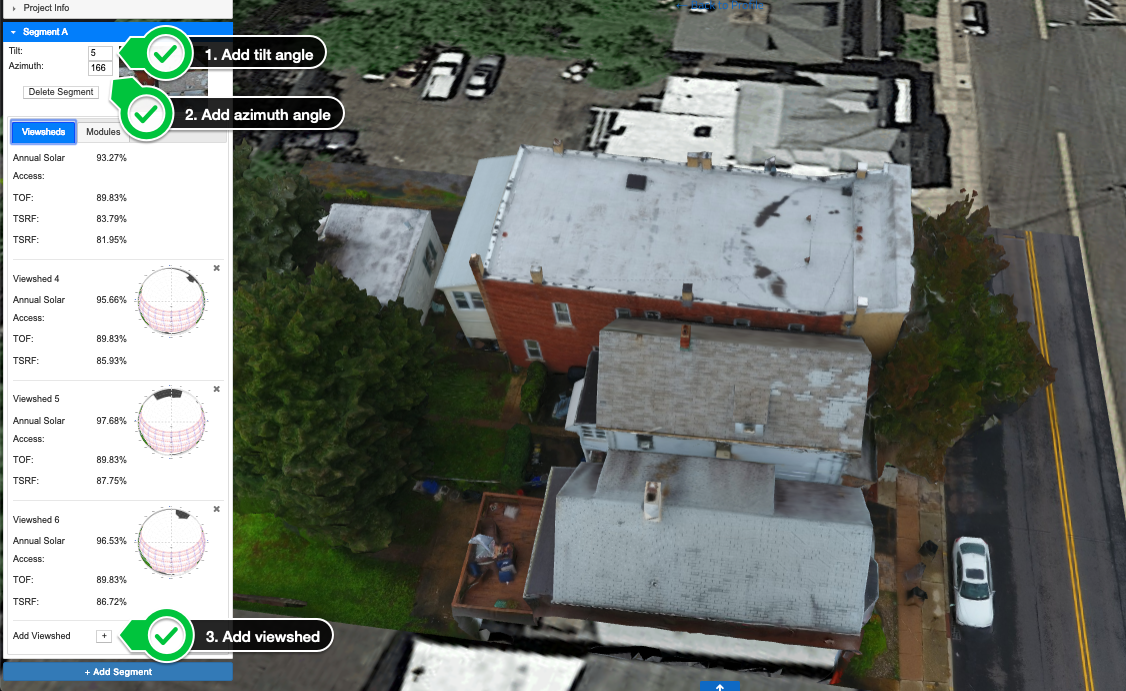

Add tilt angle and azimuth before generating a viewshed. Location must also be added. Not sure how to measure the tilt and angle and azimuth? Please see the Protractor tool page and the Obtaining Azimuth Angles Page.

📘

Helpful Tips

Tilt angles for for flat roofs should be the same angle as the racking.

Tilt angles for residential roofs should be the same angle as the roof plane.

📘

Helpful Tip

If you are generating viewsheds after you added modules, please hide the modules in the Modules Tab before generating the viewshed. See how to hide modules here.
